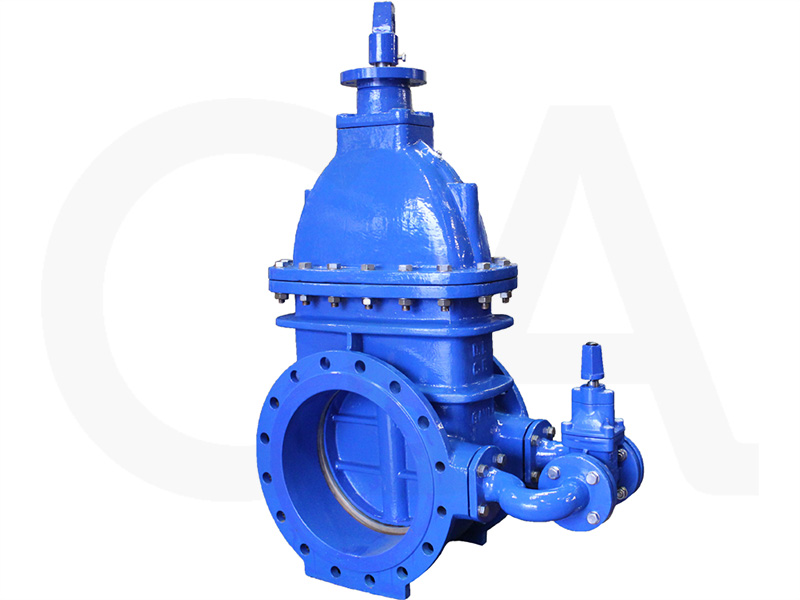

FIG. B01 METAL SEAT GATE VALVES DN750 – 1600

Features:
Usage potable water, waste water & Sewage
Available in sizes 700mm – 1600mm
Strong ductile iron construction.
Blue fusion bonded epoxy coating in accordance with
BS EN 14901 providing excellent corrosion resistance.
Full clear bore for optimum flow.
Stainless steel stem for strength and corrosion resistance.
Supplied with cap top or handwheel as standard.

Suitable for:

Valve type:

Options

Cap Top
Actuator with Mounting ISO Flange
Clock or Anti Clock Operation
Chain Wheels
Extension Spindles
Locking Devices
PN25 Available on Request
Flange Fixing Kits
Gear Box

Note: Actuators must be fitted with the valve stem in the vertical position

Technical Specification

PART

PARTS

MATERIAL

STANDARDS

1

BODY

GGG50

BSEN 5163 :EN-GJS-500-7

2

WEDGE

GGG50

BSEN 5163 :EN-GJS-500-7

3

BONNET

GGG50

BSEN 5163 :EN-GJS-500-7

4

STEM

STAINLESS STEEL

431S29

5

STEM NUT

BRONZE

BSEN 1982 CC491K

6

HOLDING RING

BRONZE

BSEN 1982 CC491K

7

SEALING RING

BRONZE

BSEN 1982 CC491K

8

GLAND

DUCTILE IRON

BSEN 500-7

9

MOUNT FLANGE

DUCTILE IRON

BSEN 500-7

10

BONNET GASKET

EPDM

BS EN2428

11

O RING

EPDM

BS EN2428

12

DUST RING

EPDM

BS EN2428

13

BODY SEAT RING

BRONZE

BSEN 1982 CC491K

14

WEDGE SEAT RING

BRONZE

BSEN 1982 CC491K

15

BONNET BOLTS/NUTS

STAINLESS STEEL

GR 304

16

CAP SCREWS

STAINLESS STEEL

GR 304

17

AIR RELEASE AND DRAIN PLUG AS STANDARD
