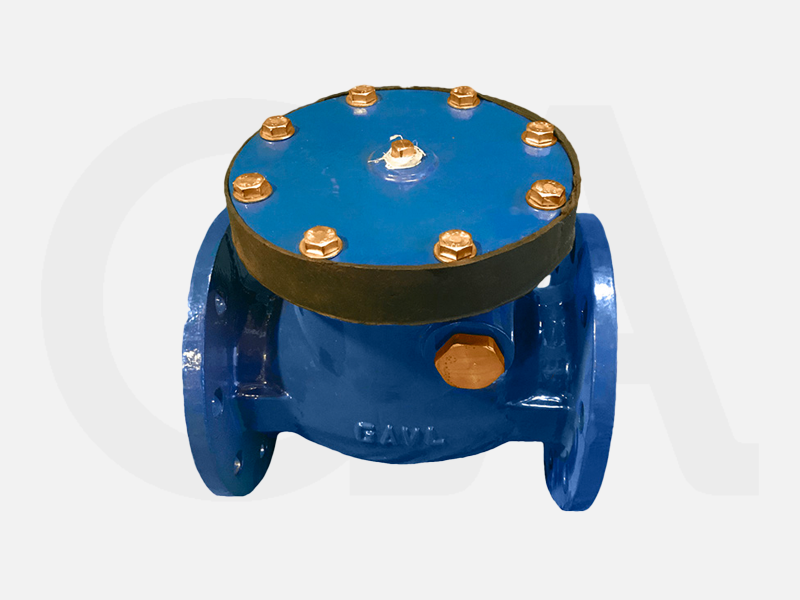

FIG. C01 CHECK VALVE 50MM – 400MM

Usage potable water, waste water & Sewage
Available in sizes 50mm – 400mm
Strong ductile iron construction.
Blue fusion bonded epoxy coating in accordance with
BS EN 14901 providing excellent corrosion resistance.
Full clear bore for optimum flow.
Supplied with 1/2” BSP air release on cover
Suitable for both horizontal and vertical installations

Suitable for:

Valve type:

Description

Usage potable water, waste water & Sewage
Available in sizes 50mm – 400mm
Strong ductile iron construction.
Blue fusion bonded epoxy coating in accordance with
BS EN 14901 providing excellent corrosion resistance.
Full clear bore for optimum flow.
Supplied with 1/2” BSP air release on cover
Suitable for both horizontal and vertical installations

Options

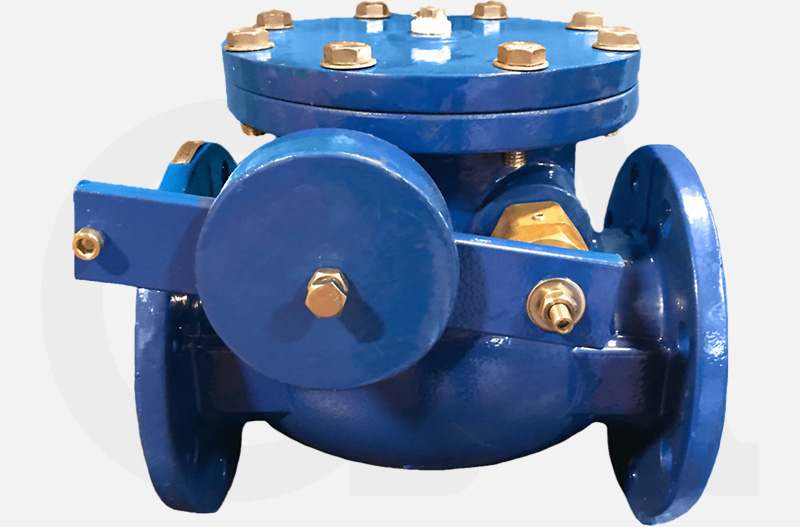

Lever & Weight (C02)

Proximity Switch

Safety Guard – Coated

Technical Specification

PARTS

MATERIAL

STANDARDS

BODY

GGG50

BSEN 5163 :EN-GJS-500-7

BODY SEAT RING

BRONZE

BSEN 1982 CC491K

DISC SEAT RING

BRONZE

BSEN 1982 CC491K

DISC

GGG50

BSEN 5163 :EN-GJS-500-7

HINGE

BRONZE

DN50-150 BS1400 LG2

DN200-400 BS1452 Gr 220

SHAFT

STAINLESS STEEL

BS EN 10088-2

COVER

BRONZE

BSEN 1982 CC491K

DISC PIN

GGG50

BSEN 5163 :EN-GJS-500-7

BEARING

BRONZE

BSEN 1982 CC491K

BOLTING

STAINLESS STEEL

BS EN 10088-2

LEVER

STEEL



SEALS

EPDM

COMMERCIAL

BONNET GASKET

EPDM

COMMERCIAL
