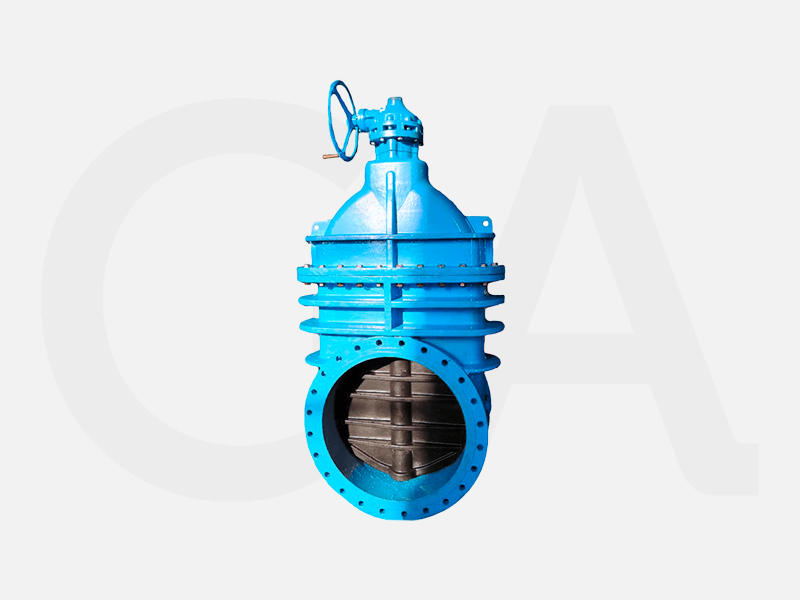

FIG. B03 RESILIENT GATE VALVES DN700 – DN1200

Usage with clean potable water
Available in sizes 700mm – 1200mm
Actuator Mounting with Gearbox as standard
Strong ductile iron construction.
Blue fusion bonded epoxy coating in accordance with
BS EN 14901 providing excellent corrosion resistance.
Full clear bore for optimum flow.
Stainless steel stem for strength and corrosion resistance.
Supplied with cap top or handwheel as standard.

Suitable for:

Water Valves

Valve type:

- Water Isolation Valves

Description

Usage with clean potable water
Available in sizes 700mm – 1200mm
Actuator Mounting with Gearbox as standard
Strong ductile iron construction.
Blue fusion bonded epoxy coating in accordance with
BS EN 14901 providing excellent corrosion resistance.
Full clear bore for optimum flow.
Stainless steel stem for strength and corrosion resistance.
Supplied with cap top or handwheel as standard.

Options

Cap Top
Clock or Anti Clock Operation
Chain Wheels
Extension Spindles
Locking Devices
Flange Fixing Kits
Actuator
By Pass Available
PN25 Available on request

Technical Specification

PART

PARTS

MATERIAL

STANDARDS

1

Body

GGG50

BSEN 1563 :EN-GJS-500-7

2

Wedge

GGG50+EPDM

BSEN 1563 :EN-GJS-500-7+ BS EN2428

3

Stem Nut

BRONZE

BS1400 AB2

4

Stem

SS420

ASTM A276

5

Gasket

EPDM

BS EN2428

6

Bonnet

GGG50

BSEN 1563 :EN-GJS-500-7

7

Bonnet Bolt

SS304

ASTM A276

8

Washer

SS304

ASTM A276

9

Nut

SS304

ASTM A276

10

O ring

EPDM

BS EN2428

11

Packing

EPDM

BS EN2428

12

Gland

GGG50

BSEN 1563:EN-GJS-500-7

13

Bearing

COMPONENT



14

Bearing

COMPONENT



15

Bracket

GGG50

BSEN 1563:EN-GJS-500-7

16

Plug

SS304

ASTM A276

17

Spur Gear Box
