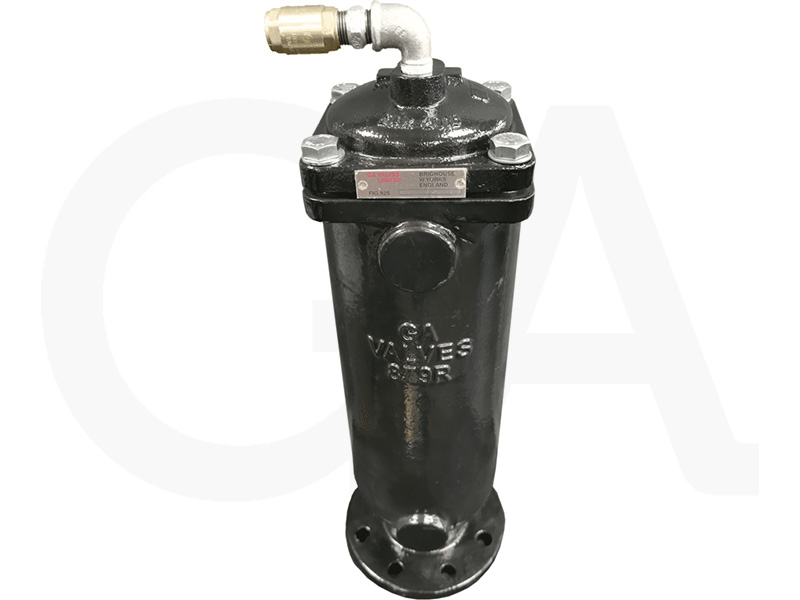

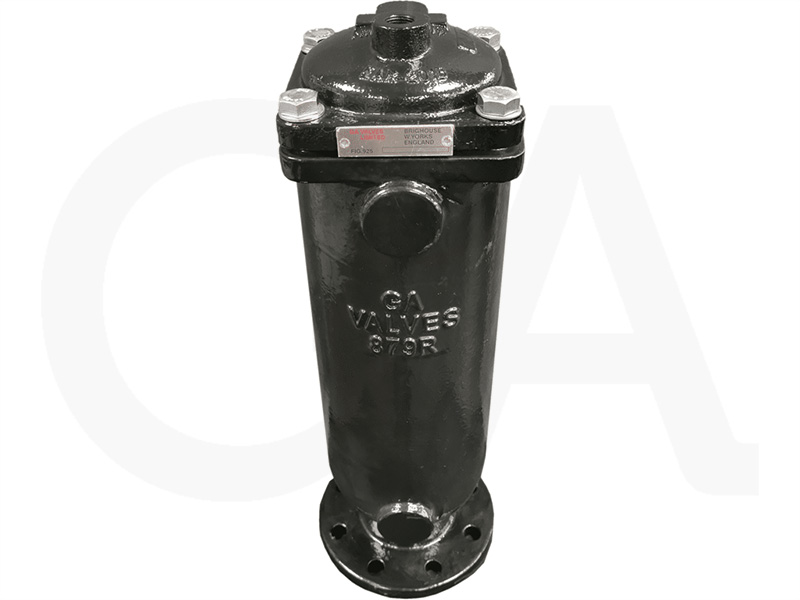

FIG. 925 SINGLE SMALL ORIFICE AIR RELEASE VALVE

Features
Usage for waste & sewage water.
During normal working of the main the valve releases the air which accumulates under pressure without escape of fluid..
With the main in operation, the float holds the orificebutton against its seat.
As air enters the body the water level is depressed until a
level is reached when the float drops from its seat, which allows air to escape.
The consequent rise in water level returns the float to its seat.
Efficient low pressure sealing at 0.2bar.
WRAS approved.

Suitable for:

Valve type:

Options

NPT threaded.
Flanged inlet with various drillings.
Screwed outlet facility.
Viton rubber.
Metal float assembly options.
9.5mm orifice size available.
Inflow / outflow check.
Flushing attachment.
Drainage boss.
Isolating gate valve with or without bevel gearbox.
Odour control unit.
25 bar version.

Technical Specification

PART

PARTS

MATERIAL

1

Body

Ductile iron

2

Cover

Ductile iron

3

Lever Bracket

316 Stainless Steel

4

Orifice

316 Stainless Steel

5

Bracket Screw

316 Stainless Steel

6

Bracket Lockwasher

316 Stainless Steel

7

Orifice Button

316 Stainless Steel/Viton

8

Nut (Button)

316 Stainless Steel

9

Lock Washer

316 Stainless Steel

10

Cover O-ring

Nitrile Rubber

11

Lever Arm

316 Stainless Steel

12

Float Arm

316 Stainless Steel

13

Spirol Pin

316 Stainless Steel

14

Link Plate

316 Stainless Steel

15

Pivot Link

316 Stainless Steel

16

Cover Bolts

316 Stainless Steel

17

Cover Washers

316 Stainless Steel

18

Float Rod

316 Stainless Steel

19

Float

316 Stainless Steel

20

Nut

316 Stainless Steel

21

Inlet Nipple (2”BSP)

Galvanised Malleable Iron
