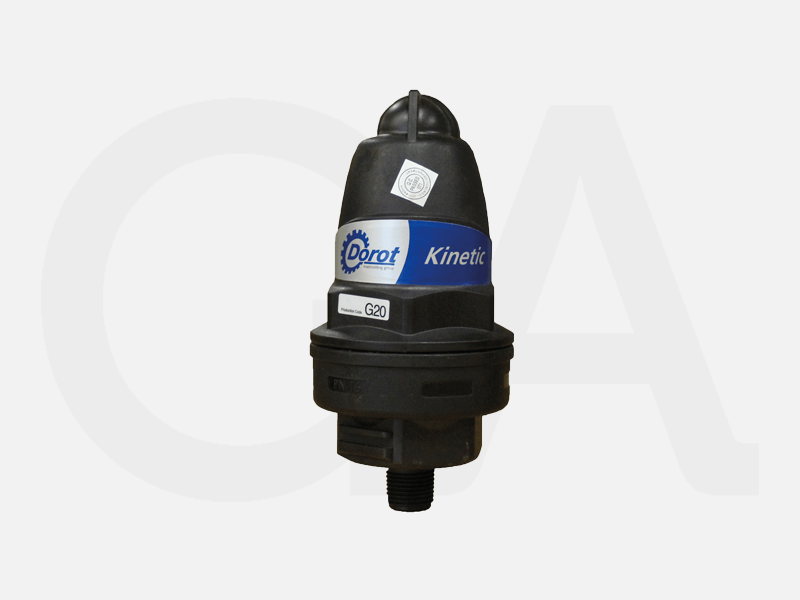

FIG. P-K KINETIC AIR RELEASE VALVE

This valve has been designed for efficient discharge and intake of air in water transport systems, filtering systems, containers, and other places where confined air could impair the system’s operation.

The valve is appropriate for:

• Expelling the air at high flow velocity during the initial filling of the system

• Introducing large quantities of air when the pipe drains, maintaining atmospheric pressures in the pipe and preventing collapse and cavitation damage to the conduits.

Suitable for:

Building & Construction Valves

Water Valves

Valve type:

- Air Release Valves For Building & Construction
- Water Air Release Valves

Description

This valve has been designed for efficient discharge and intake of air in water transport systems, filtering systems, containers, and other places where confined air could impair the system’s operation.

The valve is appropriate for:

• Expelling the air at high flow velocity during the initial filling of the system

• Introducing large quantities of air when the pipe drains, maintaining atmospheric pressures in the pipe and preventing collapse and cavitation damage to the conduits.

Properties

Leak-proof sealing at all conditions, including low system pressure. The aerodynamic design of the float provides air flow at a very high velocity. The float does not close before the water has reached the valve.

Threaded outlet elbow allows various possibilities of drain connection. The valve design contains a very limited number of parts, allowing easy dismantling for maintenance.

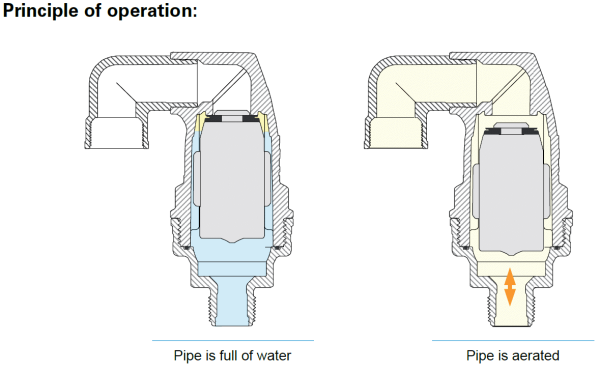

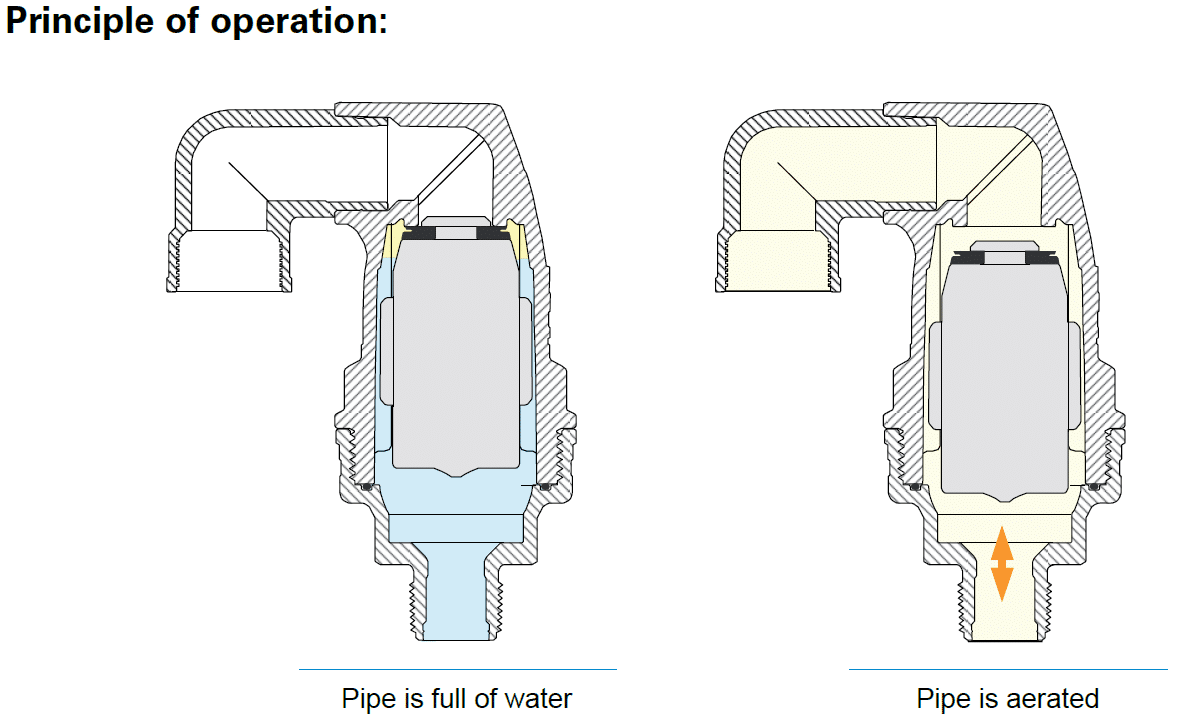

Operation

The DAV-P-K valve has two modes of operation: Discharge of large quantities of air at a high flow velocity when the conduit is being filled. When the water arrives to the valve, the float rises and closes the outlet.

Introduction of air into the pipeline when the internal pressure is sub-atmospheric. The pressure difference forces the float to drop to “opened” position, allowing large volumes of air to flow into the pipe.
