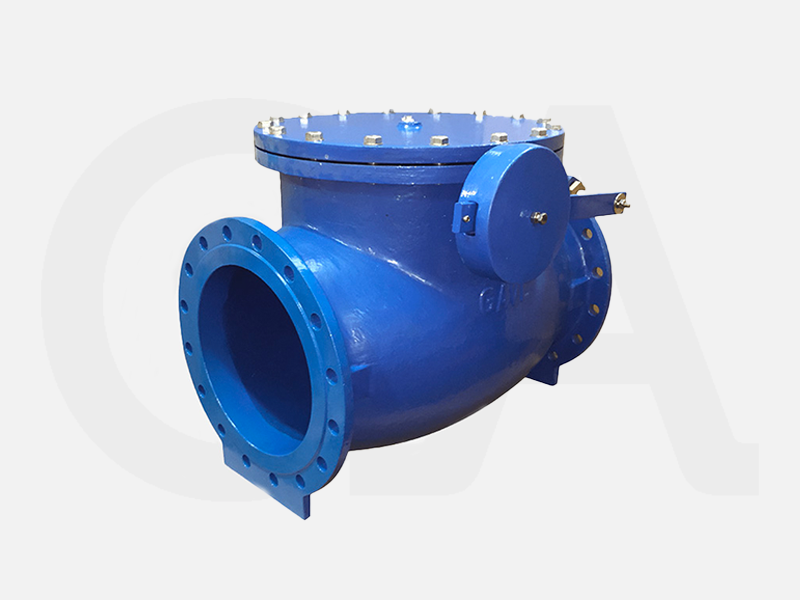

FIG. C02 CHECK VALVE 450MM – 900MM

Usage potable water, waste water & Sewage
Available in sizes 450mm – 900mm
Strong ductile iron construction.
Blue fusion bonded epoxy coating in accordance with
BS EN 14901 providing excellent corrosion resistance.
Full clear bore for optimum flow.
Supplied with 1/2” BSP air release on cover
Suitable for both horizontal and vertical installations

Suitable for:

Wastewater & Sewage Valves

Water Valves

Valve type:

- Check Valves For Wastewater & Sewage
- Water Check Valves

Description

Usage potable water, waste water & Sewage
Available in sizes 450mm – 900mm
Strong ductile iron construction.
Blue fusion bonded epoxy coating in accordance with
BS EN 14901 providing excellent corrosion resistance.
Full clear bore for optimum flow.
Supplied with 1/2” BSP air release on cover
Suitable for both horizontal and vertical installations

Options

Lever & Weight

Proximity Switch

Safety Guard – Coated

By-pass assembly on request

Technical Specifications

NO

PARTS

MATERIAL

STANDARDS

1

BODY

GGG50

BSEN 5163 :EN-GJS-500-7

2

DISC

GGG50

BSEN 5163 :EN-GJS-500-7

3

ROCKER

GGG50

BSEN 5163 :EN-GJS-500-7

4

DISC SEAL RING

BRONZE

DN50-150 BS1400 LG2

5

BODY SEAL RING

BRONZE

DN50-150 BS1400 LG2

6

SHAFT

STAINLESS STEEL

BS EN 10088-2

7

BONNET

GGG50

BSEN 5163 :EN-GJS-500-7

8

GASKET

EPDM

BS EN2428
