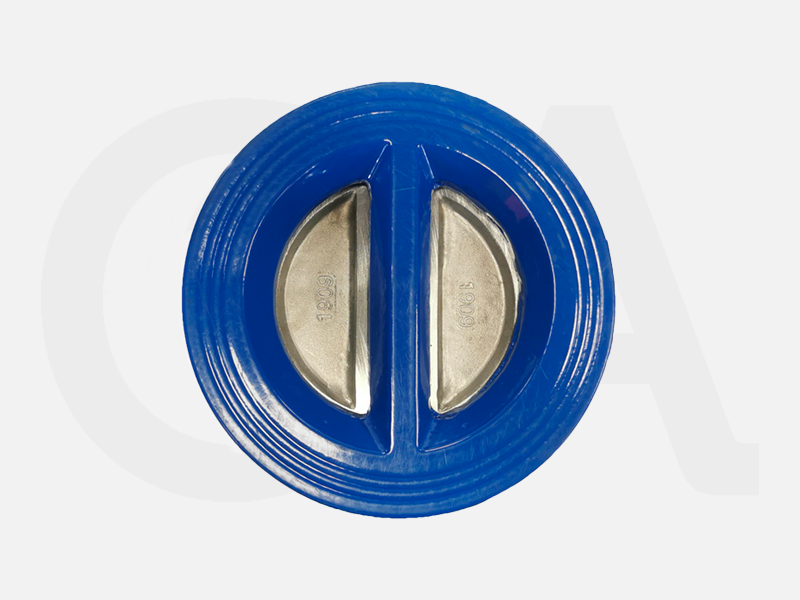

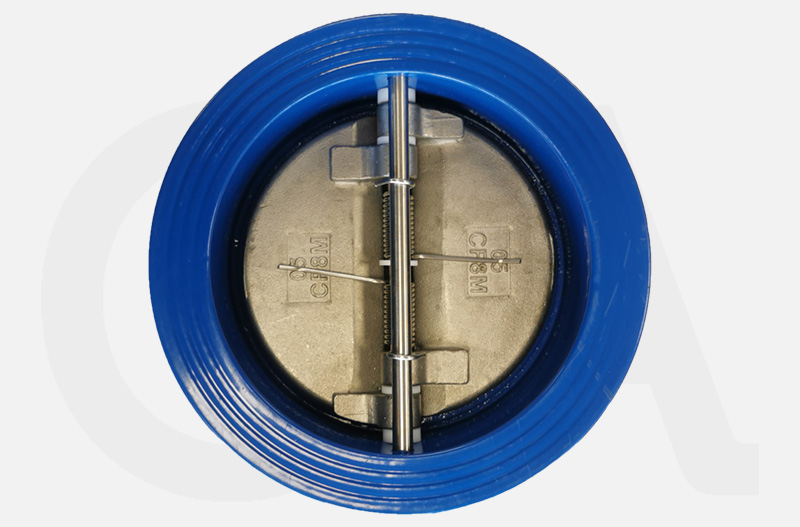

FIG. C07 DUAL PLATE CHECK VALVE 50MM – 600MM

Usage potable water.
Available in sizes 50mm – 600mm / ex-stock.
Ductile iron wafer pattern dual plate Non-Return Valves.
Strong ductile iron construction.
Blue fusion bonded epoxy coating in accordance with
BS EN 14901 providing excellent corrosion resistance.
Spring loaded for rapid closure.
EPDM seat to ensure quiet operation.
Low head loss.
Suitable for Horizontal or Vertical Installation.

Suitable for:

Building & Construction Valves

Water Valves

Valve type:

- Check Valves For Building & Construction
- Water Check Valves

Description

Usage potable water.
Available in sizes 50mm – 600mm / ex-stock.
Ductile iron wafer pattern dual plate Non-Return Valves.
Strong ductile iron construction.
Blue fusion bonded epoxy coating in accordance with
BS EN 14901 providing excellent corrosion resistance.
Spring loaded for rapid closure.
EPDM seat to ensure quiet operation.
Low head loss.
Suitable for Horizontal or Vertical Installation.

Technical Specification

NO

MATERIAL

STANDARDS

1

BODY

DUCTILE IRON

2

PLATE

DUCTILE IRON

3

SPRING

STAINLESS STEEL

4

HINGE PIN

STAINLESS STEEL

5

PLUG

CARBON STEEL

6

BODY BEARING

PTFE

7

SPRING BEARING

PTFE

8

STOP PIN

STAINLESS STEEL

9

EYE BOLT

CARBON STEEL

10

BODY SEAT

EPDM
